Item No.: 001
Description Brand Introduction Review
Description

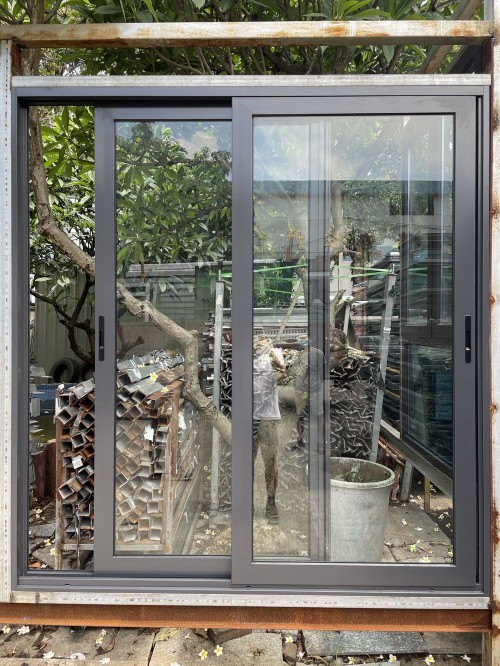

ECO 95 economical aluminum door

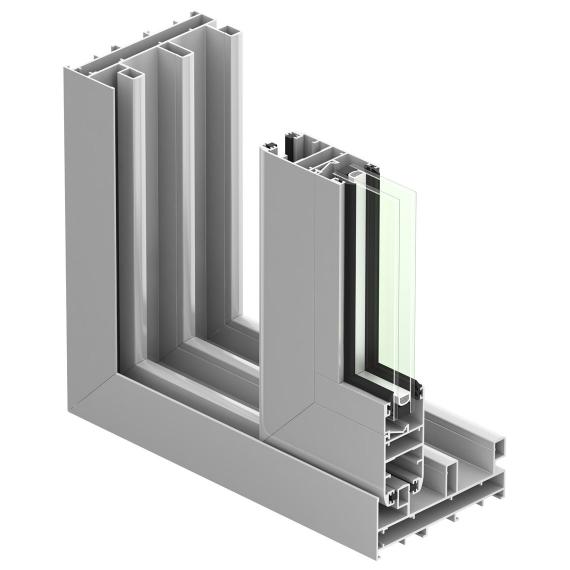

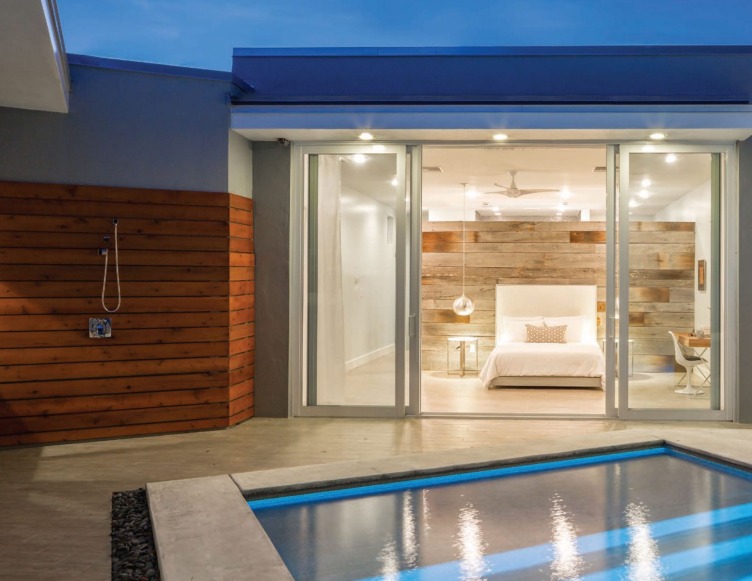

ECO 95 is a highly insulated sliding system with ultra-slim profiles and a concealed frame that combines comfort with elegance. Thanks to the clever design, this sliding door allows maximum natural light and provides optimal panoramic views. The integrated innovative technologies guarantee ultimate performance concerning wind-, water tightness, and thermal insulation, meeting the highest standards. ECO 95 offers the design freedom required to create contemporary living spaces, combining ultimate brightness with maximum comfort.
The ECO 95 without thermal break offer provides tailored solutions for external joinery in tropical climates, or indoor joinery for partitioning spaces. Whether it’s a new build or renovation, from the simplest to the most complex project, the ECO 95 sliding window and door offers a suitable solution every time. The ECO95 sliding window and door without thermal break is based on a 95 mm module. The installation and cladding environments are the same as for other casements and doors. The ECO 95 sliding window without thermal break range is available for different applications: 2 and 3 tracks of 2 to 5 leaves, composite frames, insect-screen solution. All of these applications are available with concealed drainage and with or without a low threshold (reduced mobility access). A paracyclonic version is also available to meet the requirements of tropical climates.



KEY FEATURES
MULTIPLE APPLICATIONS
2 to 6 leaves on 2 and 3 tracks
Composite frames
Insect-screen solution
Cladding (flashings, sills and architraves) as for
other range doors and windows.
OPENING SECTION VERSIONS
Opening for single-glazing from 6 to 13 mm
Opening for double-glazing from 24 to 28 mm
ACCESSIBILITY
• Specially adapted for easy access on all available
applications
LOCKING MECHANISMS
• Multiple combinations available with or without
1 to 4-point key-operated locking
DESIGN

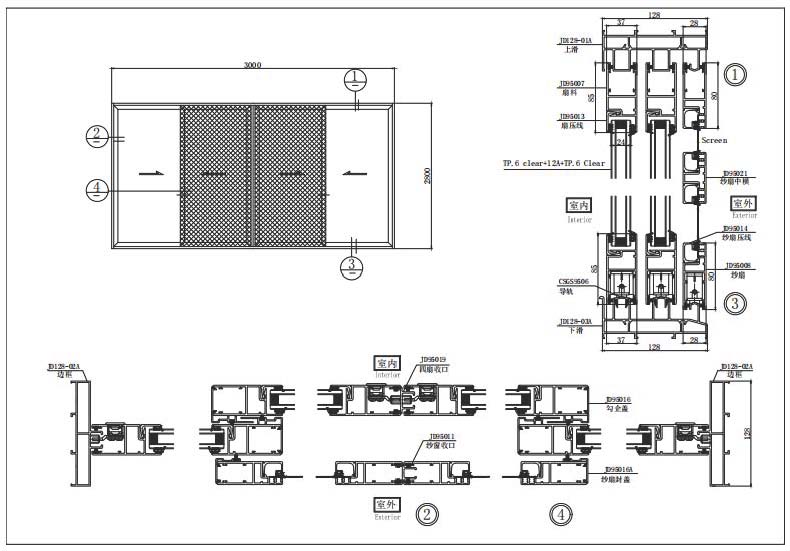

Simplicity of forms and slim visible frames:
128mm on the edge, 37mm on the central
mullions, and 85mm on the central meeting
stile of the 4 leaves



Our company was founded in Tianhe District, Guangzhou on May 8, 2003

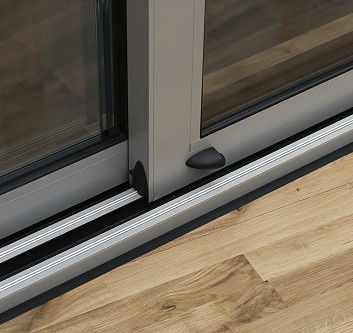

Discreet operating mechanisms
Minimalist-style strip reinforcer which may be
enhanced with a steel profile
Concealed drainage with invisible water
evacuation for all applications.

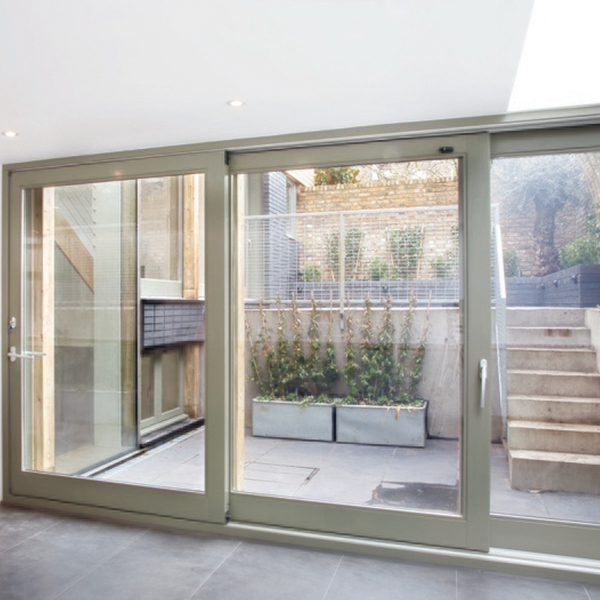

LARGE DIMENSIONS
A design appropriate for large sizes to maximize
light gain
Dimensions up to 3 m long x 2.5 m high
(2-leaf frame with high inertia mullions)
Max. weight per leaf: 200 kg
PERFORMANCE
Paracylonic and strengthened drainage version
suitable for tropical zones
Brand Introduction

Brand Introduction :

    Aluking is a corporation established to cater the demand in the production and fabrication of Curtain Walls, Windows, Doors and Metal Cladding for all types of buildings.

    Driven by passion to work and aspiration, Aluking is aiming high to become a producer that offers a complete services and a solution provider in the building facade industry.

    Aluking is empowered by the Faith, Experience, Determination and Skills of the people and every individual behind the Company together with the unwavering supports and partnership of reliable suppliers to deliver a complete and successful performance in every undertaking.

    That is why and how Aluking makes a difference.

From humble beginnings in 2006, Aluking has evolved into one of the leading curtain wall suppliers by providing unique design capabilities through streamlined, state of the art manufacturing methods. Over 15 years, we have developed a process of design, production and delivery of window and unitized curtain walls that’s been carefully constructed with the best results in mind.  Within this system, we treat every job as its own unique business problem with its own unique real world solution.  Our product isn’t just window and unitized curtain wall; it’s the infrastructure, process and solution based approach to business that comes along with it.

    Our machining and fabrication facility is fully equipped with two high end thermal break rolling machines, six double head cut saws, four CNC profile centres and three CNC small part centres.  Our staff receive training and upgrading on a regular basis.

    Aluking manufactures most of our required components in house. When needed, external vendors must comply with our internal quality assurance inspections.

    Being expertly equipped allows us to provide both standard and complex quality fabricated products in a timely manner.
