Item No.: 00098
Description Brand Introduction Review
Description
Curtain walls can be classified by their method of fabrication and installation into the following general categories

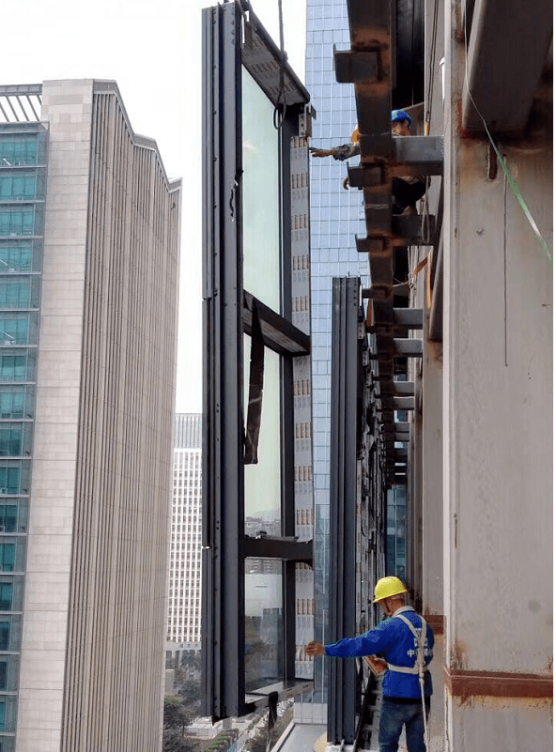

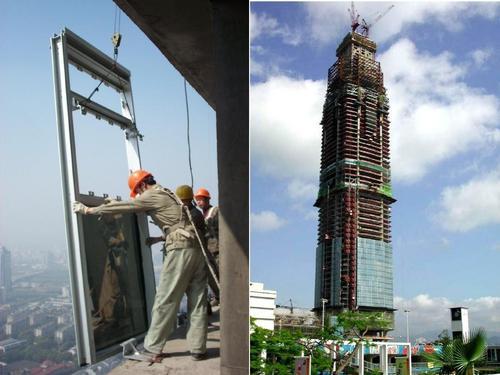

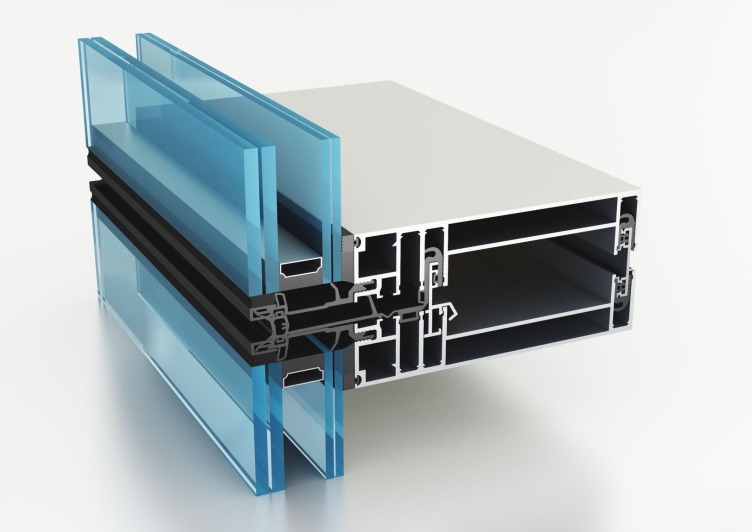

 stick systems and unitized (also known as modular) systems. In the stick system, the curtain wall frame (mullions) and glass or opaque panels are installed and connected together piece by piece. In the unitized system, the curtain wall is composed of large units that are assembled and glazed in the factory, shipped to the site and erected on the building.

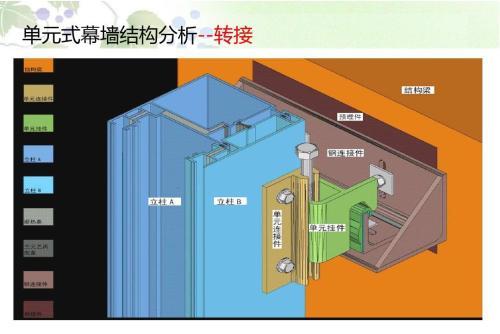

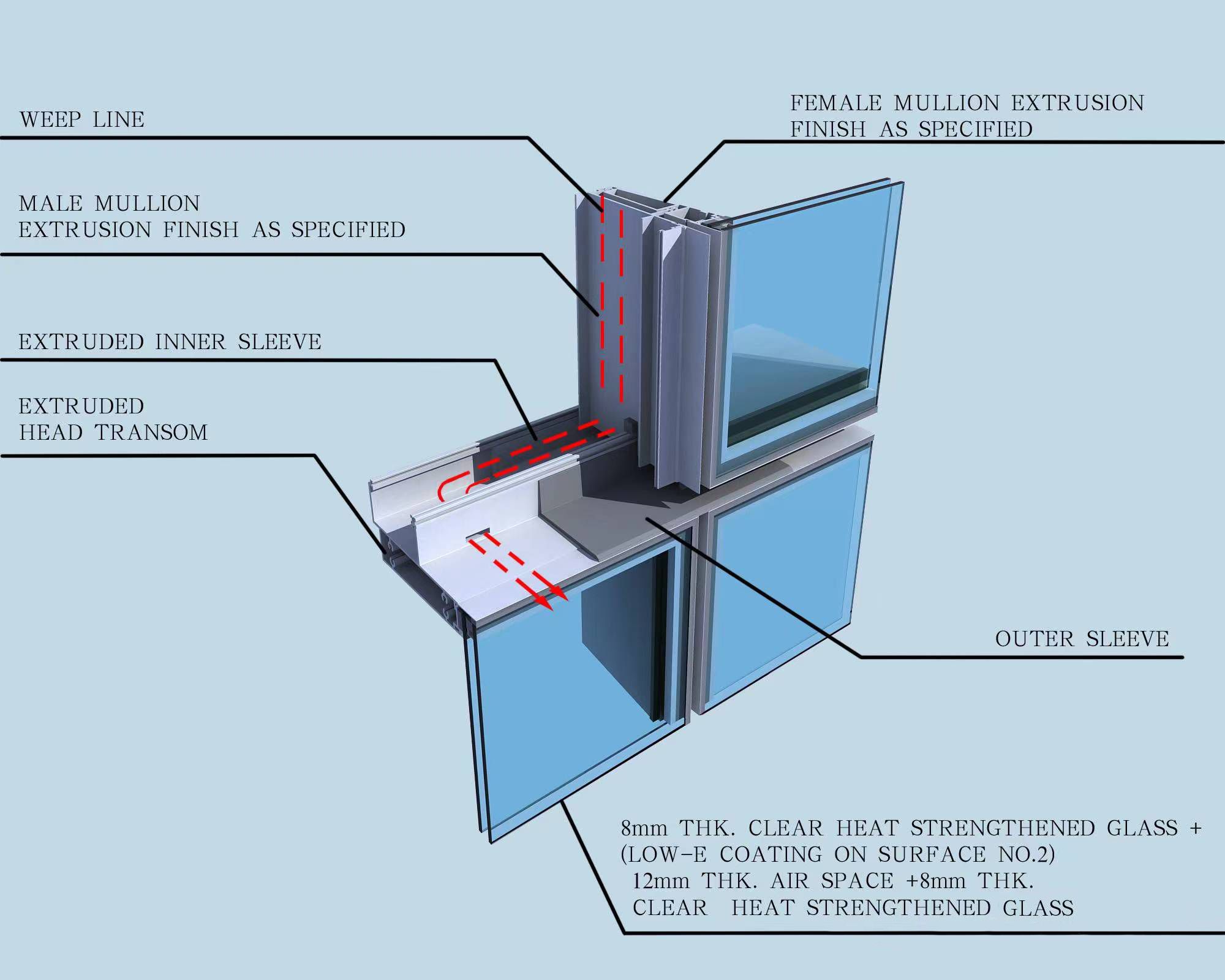

Vertical and horizontal mullions of the modules mate together with the adjoining modules.
Modules are generally constructed one story tall and one module wide but may incorporate multiple modules. Typical units are five to six feet wide.Curtain walls can also be classified as water managed or pressure-equalized systems. Both the unitized and stick-built systems are designed to be either interior or exterior glazed systems. Interior and exterior glazed systems offer different advantages and disadvantages. Interior glazed systems allow for glass or opaque panel installation into the curtain wall openings from the interior of the building.

Details are not provided for interior glazed systems because air infiltration is a concern with interior glazed systems.
 Interior glazed systems are typically specified for applications with limited interior obstructions to allow adequate access to the interior of the curtain wall. For low rise construction with easy access to the building, outside glazing is typically specified. For high-rise construction interior glazing is sometimes used due to access and logistics of replacing glass from a swing stage.



In exterior glazed systems, glass and opaque panels are installed from the exterior of the curtain wall.
Exterior glazed systems require swing stage or scaffolding access to the exterior of the curtain wall for repair or replacement. Some curtain wall systems can be glazed from either the interior or exterior.Typical opaque panels include opacified spandrel glass, metal panels, thin stone, and other materials, such as terra cotta or FRP (fiber-reinforced plastic).Vision glass is predominantly insulating glass and may have one or both lites laminated (see Glazing), usually fixed but sometimes glazed into operable window frames that are incorporated into the curtain wall framing.

Spandrel glass can be monolithic, laminated, or insulating glass.

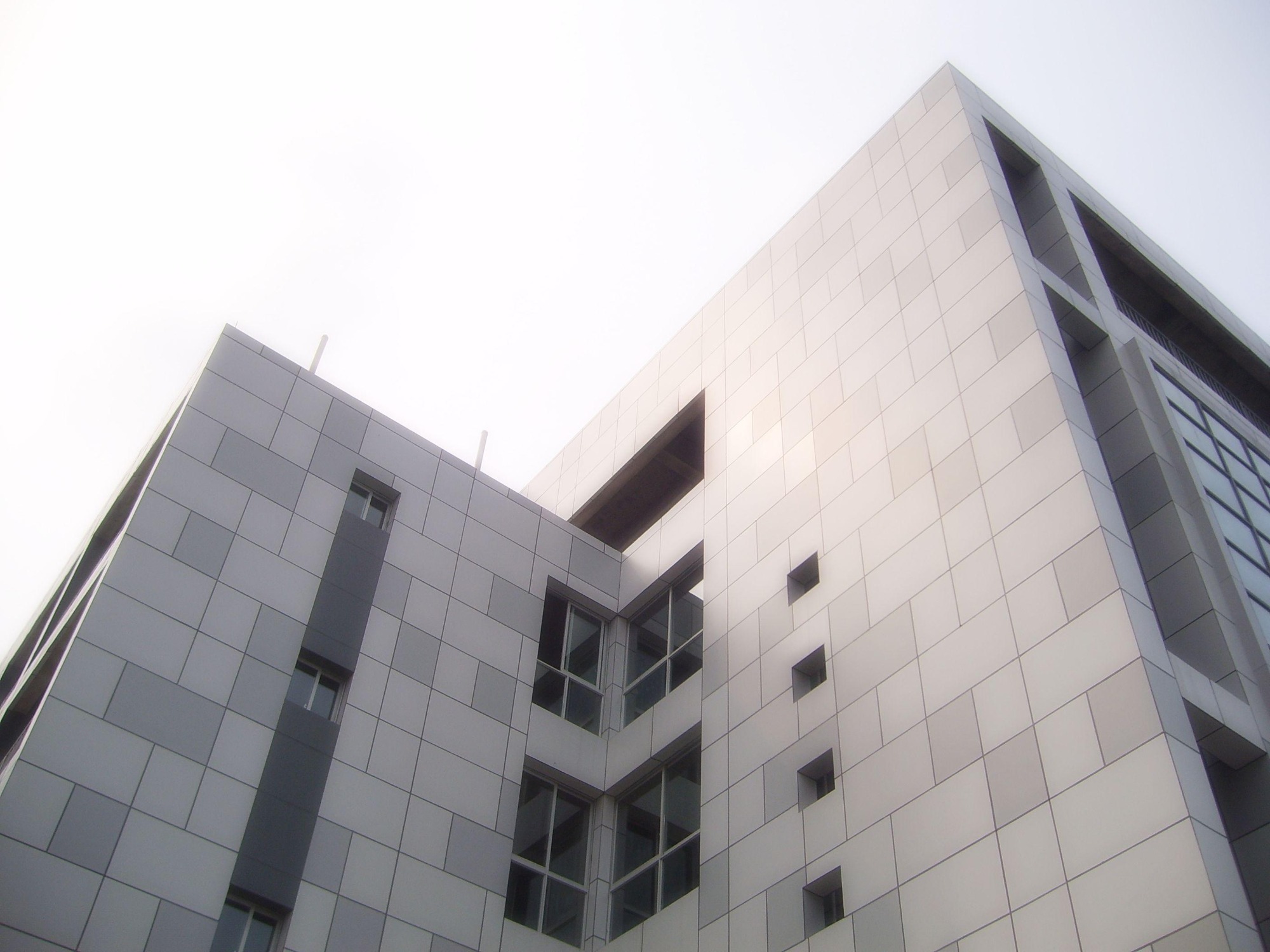

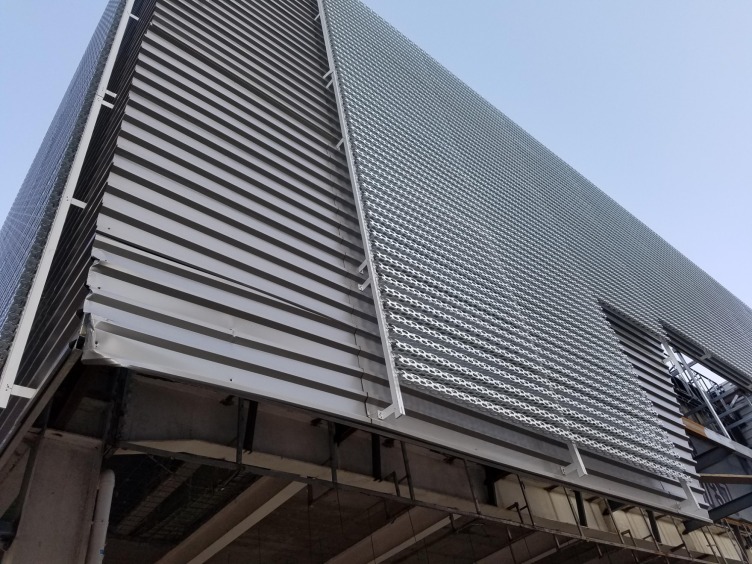

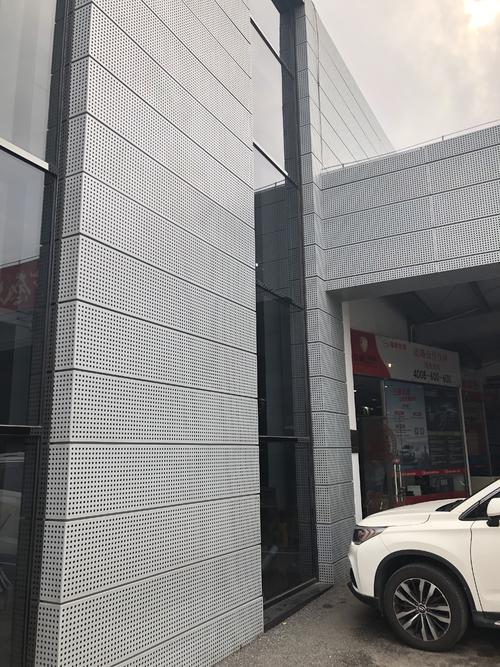

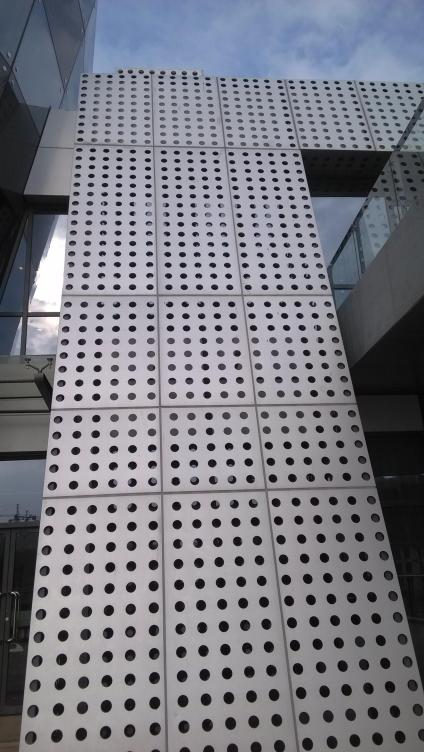

 The spandrel glass can be made opaque through the use of opacifiers (film/paint or ceramic frit) applied on an unexposed surface or through "shadow box" construction, i.e., providing an enclosed space behind clear spandrel glass. Shadow box construction creates a perception of depth behind the spandrel glass that is sometimes desired.Metal panels can take various forms including aluminum plate, stainless steel or other non-corrosive metal, thin composite panels consisting of two thin aluminum sheets sandwiching a thin plastic interlayer, or panels consisting of metal sheets bonded to rigid insulation, with or without an inner metal sheet to create a sandwich panel.



Thin stone panels are most commonly granite. White marble should not be used due to its susceptibility to deformation due to hysteresis (thin stone is not covered in this chapter).
The curtain wall often comprises one part of a building's wall system. Careful integration with adjacent elements such as other wall claddings, roofs, and base of wall details is required for a successful installation.

Brand Introduction

Brand Introduction :

    Aluking is a corporation established to cater the demand in the production and fabrication of Curtain Walls, Windows, Doors and Metal Cladding for all types of buildings.

    Driven by passion to work and aspiration, Aluking is aiming high to become a producer that offers a complete services and a solution provider in the building facade industry.

    Aluking is empowered by the Faith, Experience, Determination and Skills of the people and every individual behind the Company together with the unwavering supports and partnership of reliable suppliers to deliver a complete and successful performance in every undertaking.

    That is why and how Aluking makes a difference.

From humble beginnings in 2006, Aluking has evolved into one of the leading curtain wall suppliers by providing unique design capabilities through streamlined, state of the art manufacturing methods. Over 15 years, we have developed a process of design, production and delivery of window and unitized curtain walls that’s been carefully constructed with the best results in mind.  Within this system, we treat every job as its own unique business problem with its own unique real world solution.  Our product isn’t just window and unitized curtain wall; it’s the infrastructure, process and solution based approach to business that comes along with it.

    Our machining and fabrication facility is fully equipped with two high end thermal break rolling machines, six double head cut saws, four CNC profile centres and three CNC small part centres.  Our staff receive training and upgrading on a regular basis.

    Aluking manufactures most of our required components in house. When needed, external vendors must comply with our internal quality assurance inspections.

    Being expertly equipped allows us to provide both standard and complex quality fabricated products in a timely manner.
